Capability
Engineering+ Programming
The work starts before the first cut, with 3D modeling, detailing, CNC programming and fabrication planning built around how the project will actually be manufactured.
CAD • 3D Modeling • Detailing • CNC Programming
Engineering Support
Build it right
before the first cut.
Schuler’s engineering and programming capabilities connect customer drawings to the shop floor, helping translate design intent into fabrication-ready parts and assemblies.
That connection between engineering and manufacturing helps reduce questions, improve fit-up and keep complex work moving.

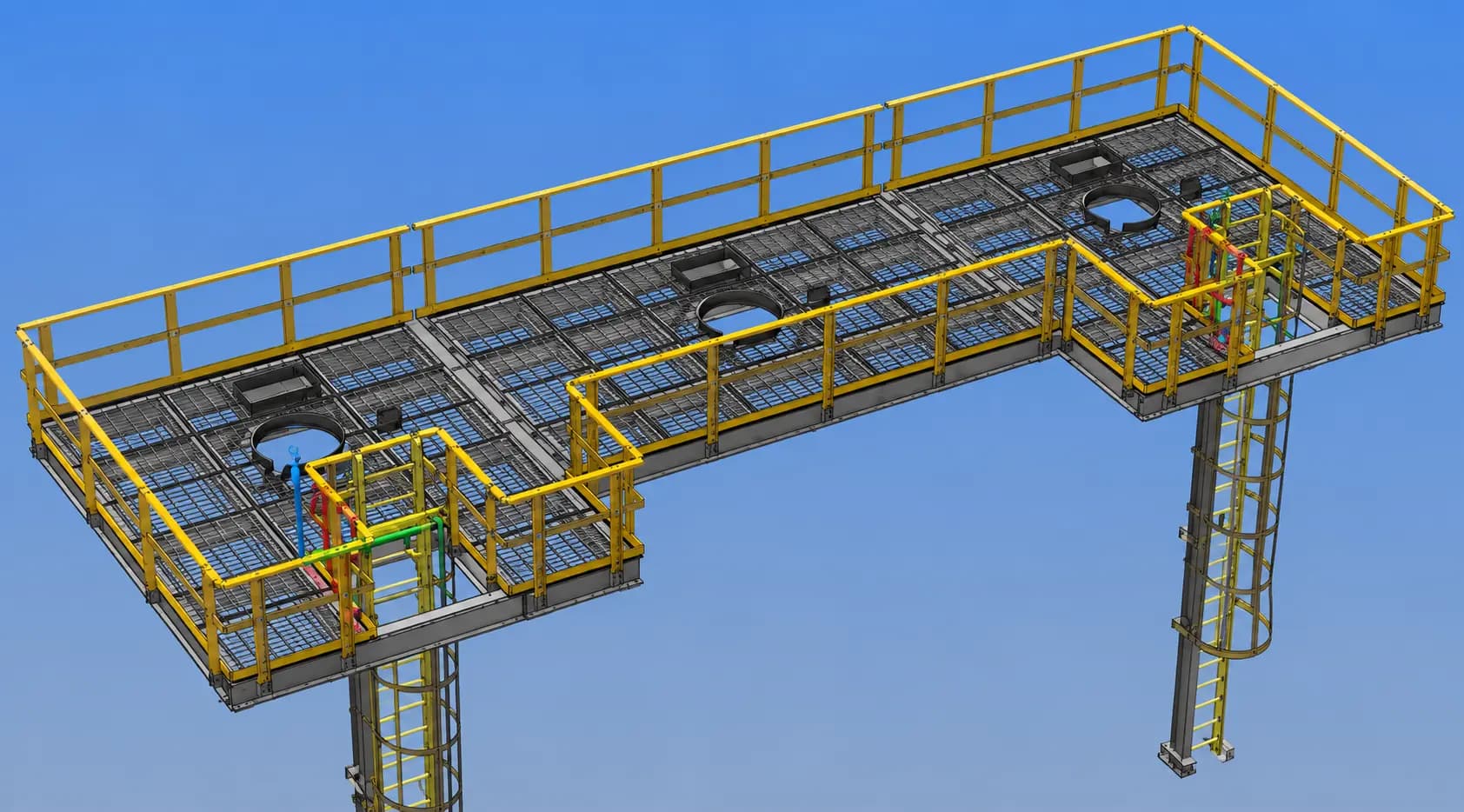

3D Modeling + Fabrication Planning
Complex access systems modeled before fabrication begins.
Capabilities
From ModelTo Machine Code.

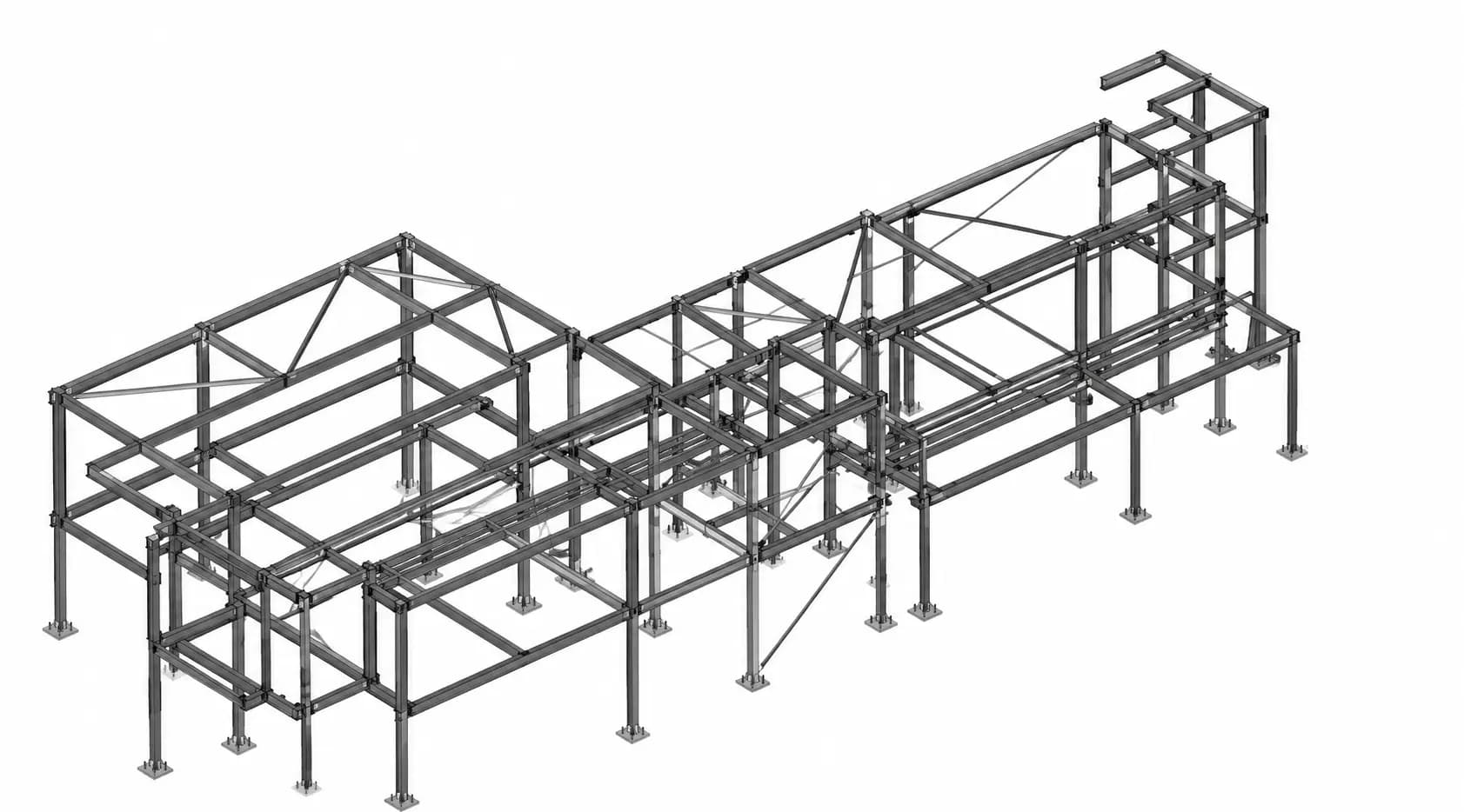

Full-Assembly Modeling
See the structure, connections and relationships before fabrication.
Engineering Workflow
Connecting the office
to the shop floor.
1. Review
Customer drawings, specifications and project requirements.
2. Model + Detail
Develop fabrication-ready geometry, assemblies and details.
3. Program
Prepare machine programs for laser, tube, beam, angle and other CNC equipment.
4. Release
Controlled drawings and programs move to production.
5. Fabricate
Cut, machine, form, weld and assemble to the approved information.
6. Revise + Control
Manage changes so the shop is working from the correct revision.
Why It Matters
Fewer surprises.
Better fabrication.
When modeling, detailing and programming are tied directly to fabrication, Schuler can solve manufacturing issues earlier and keep more of the project under one roof.
Engineering + Programming
Send us the project files.
Drawings, models, specifications or production files. Schuler can help move the project from design into fabrication.
